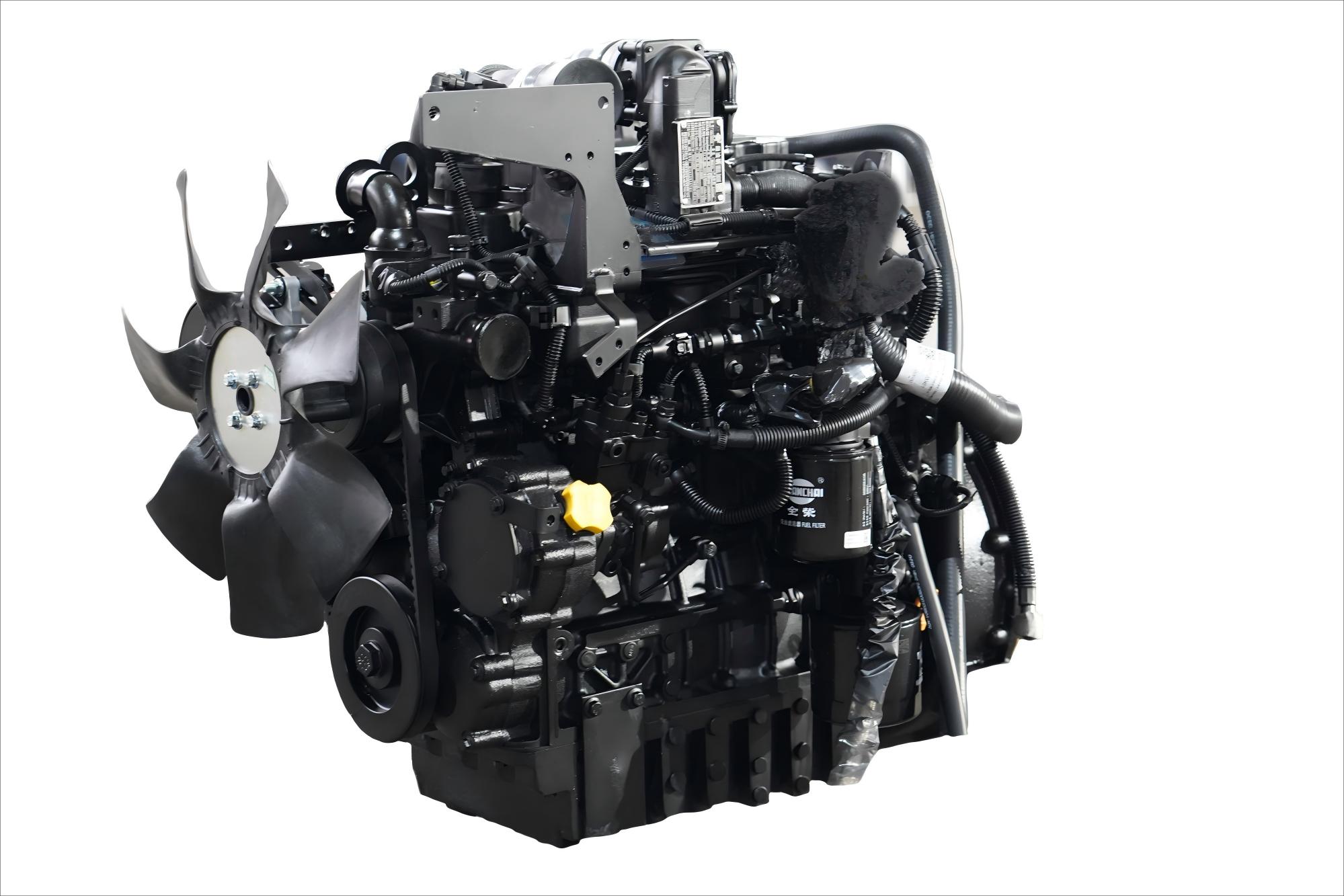

Stage IV Emission Standard Diesel Engine for Agricultural Equipment
Stage IV Emission Standard Diesel Engine for Agricultural Equipment

The diesel engines are widely used in 14hp to 240hp tractor and 100hp to 260hp harvester.

These engines boast exceptional power, superb performance, low fuel consumption, premium configuration, long service life, and outstanding reliability.

Share
  • Product introduction

  • Product features

  • Main parameter

The diesel engines are widely used in 14hp to 240hp tractor and 100hp to 260hp harvester.

These engines boast exceptional power, superb performance, low fuel consumption, premium configuration, long service life, and outstanding reliability.

Environmental Friendliness: The coomon rail fuel system accurately controls the timing or fuel quantity according to the working conditions.

Economy: The engine delivers direct injection with a multi-injection common rail system for efficient combustion and low fuel use.

Durability: This durable engine features an alloy cast iron block, famous brand piston rings, and a reinforced bearing system for proven reliability.

Power: Long stroke, sufficient torque reserve and low speed with high torque.

Comfort: The unique structural design of the body and cylinder head has high rigidity and little deformation; optimized combustion organization, low noise and small vibration.

Ease of Installation: Different kinds of interface type, wide range of adaptation,compact structure and esay to install.


Model Displacement(L) Number of Cylinders-Bore*Stroke(mm)

Rated Power

/Speed(KW/RPM)

Max Torque(N.m) Fuel Injection System Intake Mehtod Application
V13 1.27 3-81*82 19.8/2600 80 Common Rail Naturally Aspirated High-speed Rice Transplanter
V20 1.9 3-90*100 22.1/2400 110 VP Pump NA Tractor
V25 2.54 4-90*100 29.4/2400 145/155

VP Pump

/Common Rail

NA Tractor
V28 2.83 4-95*100 36.8/2400 175-185

VP Pump

/Common Rail

NA Tractor
V32 3.17 4-98*105 36.8/2200-2400 200

VP Pump

/Common Rail

NA Tractor
V38N 3.77 4-100*120 36.8/2400 255-270 Common Rail NA Tractor
V45 4.48 4-110*118 36.8/2400 270 Common Rail NA Tractor
V30 2.89 4-95*102 55.2/2300 290 Common Rail Turbocharged Tractor
V35 3.47 4-98*115 40.5-81/2400 225-420 Common Rail

Turbocharged

/Turbocharged Intercooled

Tractor
V36 3.62 4-98*120 66.2-96/2400 380-490 Common Rail Turbocharged Intercooled Tractor
V38 3.77 4-100*120 73.5-96/2200-2400 440-560 Common Rail Turbocharged Intercooled
Tractor
S45 4.29 4-105*124 118/2200 660 Common Rail Turbocharged Intercooled
Tractor
S65 6.44 6-105*124 118or 191.5/2200 700-1150 Common Rail Turbocharged Intercooled
Tractor
V30 2.89 4-95*102 74 370 Common Rail Turbocharged Intercooled
Harvester
V35 3.47 4-98*115 74-92 380-430 Common Rail Turbocharged Intercooled
Harvester
V36 3.62 4-98*120 88.2-110.3/2400 460-550 Common Rail Turbocharged Intercooled
Harvester
V38 3.77 4-100*120 118/2400 580 Common Rail Turbocharged Intercooled
Harvester
S45 4.29 4-105*124 103or 129/2200 600-700 Common Rail Turbocharged Intercooled
Harvester
